Bioxel Nodes
Use Geometry Nodes and Cycles to render volumetric data.
Render
Geometry Nodes
Key Features
- Realistic rendering of volumetric data with Blender using Geometry Nodes and Cycles, also supports EEVEE NEXT.
- Handles multiple volumetric data formats including DICOM, JPEG, Nifti, and HDF5.
- Supports 4D volumetric data visualization, allowing the import of time-based datasets.
- Provides simple yet powerful node-based controls for creating and cutting volumetric data.
Bioxel Nodes
Bioxel Nodes is a Blender addon for scientific volumetric data visualization. It using Blender’s powerful Geometry Nodes and Cycles to process and render volumetric data.
- Realistic rendering result, also support EEVEE NEXT.
- Support multiple formats.
- Support 4D volumetric data.
- All kinds of cutters.
- Simple and powerful nodes.
- Based on blender natively, can work without addon.
Read the getting started to begin your journey into visualizing volumetric data!
Welcome to our discord server, if you have any problems with this add-on.
Support Multiple Formats
| Format | EXT |
|---|---|
| DICOM | .dcm, .DCM, .DICOM, .ima, .IMA |
| BMP | .bmp, .BMP |
| JPEG | .jpg, .JPG, .jpeg, .JPEG |
| PNG | .png, .PNG |
| TIFF | .tif, .TIF, .tiff, .TIFF |
| Nifti | .nia, .nii, .nii.gz, .hdr, .img, .img.gz |
| Nrrd | .nrrd, .nhdr |
| HDF5 | .hdf, .h4, .hdf4, .he2, .h5, .hdf5, .he5 |
| OME | .ome.tiff, .ome.tif |
| MRC | .mrc, .mrc.gz, .map, .map.gz |

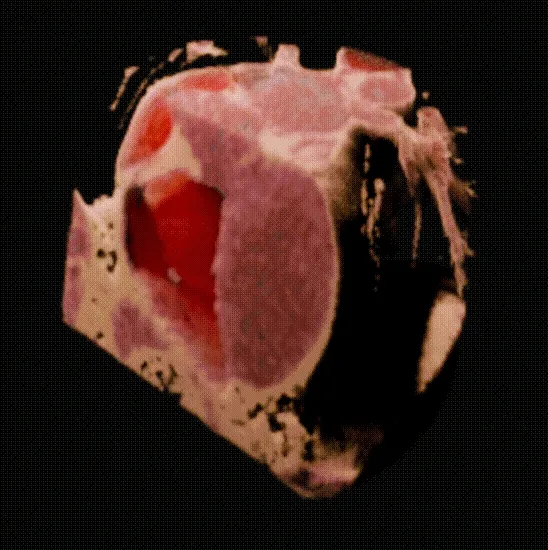

Support 4D volumetric data
🥰 4D volumetric data can also be imported into Blender.

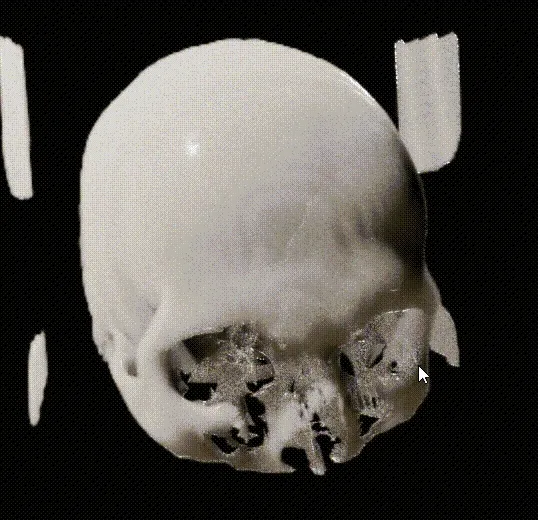

Support EEVEE NEXT
👍 EEVEE NEXT is absolutely AWESOME! Bioxel Nodes is fully support EEVEE NEXT now! However, there are some limitations:
- Only one cutter supported.
- EEVEE result is not that great as Cycles does.
Known Limitations
- Only works with Cycles CPU , Cycles GPU (OptiX), EEVEE
- Section surface cannot be generated when convert to mesh (will be supported soon)
Roadmap
- Better multi-format import experience
- One-click bake model with texture
- AI Segmentation to Generate Labels
